Model

Brand

CISCO

Model

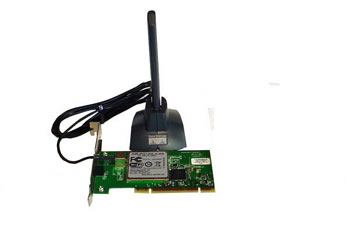

AIR-PI21AG-A-K9

Spec

Standards

IEEE 802.11a/b/g

Wireless Data Rates

Up to 54Mbps

Security

CISCO Wireless Security Suite supporting WPA and WPA2, including:
Authentication:
802.1X support, including CISCO LEAP, EAP-FAST, PEAP-GTC, PEAP-MSCHAPv2), and EAP-TLS to yield mutual authentication and dynamic per-user, per-session encryption keys (WPA and WPA2)
MAC address and standard 802.11 authentication mechanisms
Encryption:
AES-Counter Mode with Cipher Block Chaining Message Authentication Code Protocol (CCMP) encryption (WPA2)
TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC), and broadcast key rotation via CISCO TKIP or WPA TKIP
Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits

WPA/WPA2

WPA2

Interface

PCI

Frequency Band

2.40 to 2.4897 GHz
5.15 to 5.35 GHz (FCC UNII 1 and UNII 2)
5.725 to 5.85 GHz (FCC UNII 3)
5.15 to 5.35 GHz (ETSI)
5.47 to 5.725 (ETSI)
5.15 to 5.25 GHz (Japan)

Modulation

DSSS
Differential Binary Phase Shift Keying (DBPSK) @ 1 Mbps
Differential Quadrature Phase Shift Keying (DQPSK) @ 2 Mbps
Complementary Code Keying (CCK) @ 5.5 and 11 Mbps

OFDM
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-Quadrature Amplitude Modulation (QAM) @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

LEDs

Status (green) and Activity (amber)

Transmitted Power

802.11b/g:
20 dBm (100 mW) @ 1, 2, 5.5, and 11 Mbps
18 dBm (63 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, and 24 Mbps
17 dBm (50 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, and 36 Mbps
15 dBm (30 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, and 48 Mbps
13 dBm (20 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
10 dBm (10 mW) @ 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

802.11a:
16 dBm (40 mW) @ 6, 9, 12, 18, and 24 Mbps
14 dBm (25 mW) @ 6, 9, 12, 18, 24, and 36 Mbps
13 dBm (20 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
11 dBm (13 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
10 dBm (10 mW) @ 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

Antenna

Integrated dual-band 2.4/5-GHz, 1-dBi, effective-gain antenna on a two-meter cable

Operating Range

(Typical with CISCO Aironet 802.11a/b/g Wireless CardBus Adapter at maximum transmit power communicating with a CISCO Aironet 1231 Access Point configured with a 2.2-dBi dipole antenna for 802.11b/g, and a 6-dBi gain patch for 802.11a.)
Indoor (typical): 802.11a 802.11b/g
54 Mbps 45 ft (13 m) 90 ft (27 m)
18 Mbps 110 ft (33 m) 180 ft (54m)
11 Mbps 165 ft (50 m) 160 ft (48 m)
6 Mbps 300 ft (91 m)
1 Mbps 410 ft (124 m)

Outdoor (typical): 802.11a 802.11b/g
54 Mbps 100 ft (30 m) 250 ft (76 m)
18 Mbps 600 ft (183 m) 600 ft (183 m)
11 Mbps 1000 ft (304 m) 1000 ft (304 m)
6 Mbps 1300 ft (396 m)
1 Mbps 2000 ft (610 m)

System Requirements

Standard and low-profile Type II PCI with standard PCI interface
Microsoft Windows XP and Windows 2000

Dimensions

4.7" x 3.1"

Weight

0.23 lbs.

Temperature

0 to 70?C

Humidity

10% - 90%, Non-Condensing
