Overview:

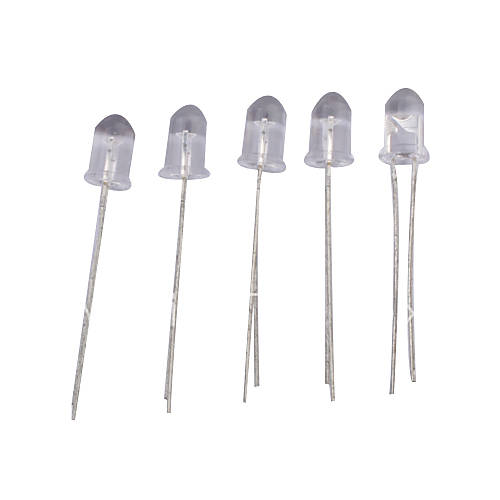

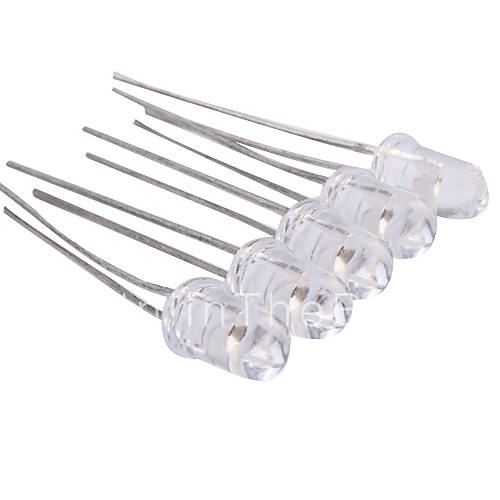

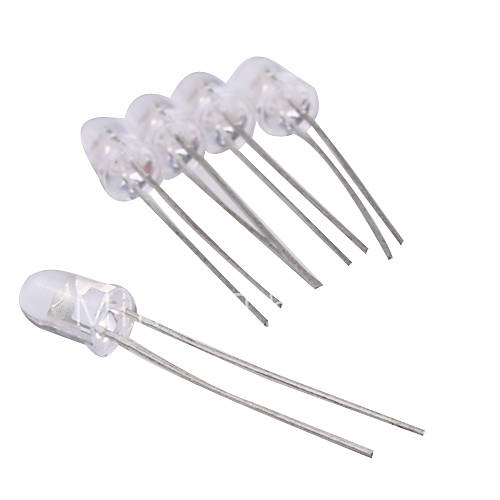

• Model: C500SW4LD, Material: GaN, Emitting: White
• Forward Voltage 3.2V MIN, 3.4V MAX (20mA)
• Reverse current: 10u (VR=5V)
• Power dissipation: 60mW
• Luminous Intension 14000 mcd MIN, 16000 mcd MAX
• Peak Forward Current: 100m Recommend Forward Current 20mA
• Electrostatic Discharge: 2000V
• Absolute maximum ratings: Ta=25 degree Celsius
• Operating temperature: -40 to 80 degree Celsius
• Lead soldering: 260 degree Celsius for 5 seconds
• Storage environment: humidity of 60% or less

Specification:

• Weight Approx:0.3g
• Size Approx:3.5 x 0.5 x 0.5 cm
