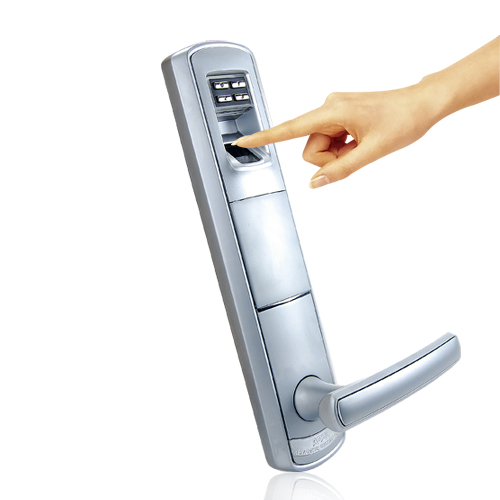

The Interpol biometric fingerprint door lock results from decades long research and millions spent in advanced entry solution development. Incorporating an 8 chip fingerprint processor array designed by Texas Instruments for advanced digital signals processing, its PCB (Printed Circuit Board) employs a sealed, dustproof, waterproof, anti-corrosion, and antistatic design for safe and stable operation. The Interpol also features a revolutionary PVD (Physical Vapour Deposition) coated fingerprint optical module which overcomes the most common problems associated with failed fingerprint readings. PVD is a technology usually associated with self cleaning surfaces to keep the FAR (False Accept Rate) under 0.0001%. The Interpol also employs a patented fingerprint identification algorithm which is able to instantly identify the correct fingerprints regardless of finger angle placement.

Features & Benefits: Eloquence aside, The Interpol is built like a T-34 tank and can withstand just as much punishment. Translation - those who are meant to stay out aren't getting in no matter what! It employs a virtually impenetrable heavy gauge cast steel body and is characterized by an integrated stainless steel and chrome finish so it looks as good as it performs. Extensive research has also been put into developing the ideal mortise for The Interpol in accordance with the American ANSI standard. To that end, it utilizes a 5 latch Mortise G and deadbolt system for higher security and protection making it the perfect keyless entry solution for 45-50 mm doors. The Interpol requires no external wiring for easy installation and also comes with three unlocking modes: fingerprint, password, and mechanical key override in case of emergency!

Builders & Remodelers: If you sell to the super-rich and famous, how will you justify the price tag on those multi-million dollar estate homes and resort villas with normal door locks? Take your entry protection and design strategy to the next level with The Interpol biometric fingerprint door lock! Nothing will get home buyers to sign that offer to purchase like seeing their soon to be 2.5 acre mansion fully fitted with the latest techno-wizardry. Personal home theater room, fitness room, basement swimming pool, and now bedrooms, dens, the interior garage and basement doors protected with The Interpol! Individualized and convenient - you can lose your keys or forget your password, but no two fingerprints are alike! Unavailable at Wal-mart or Home Depot stores that generally cater to a lower end security clientele, let The Interpol biometric fingerprint door lock be an essential part of your next big building project!

Brought to you by the wholesale Security Equipment and Solution Specialists - Chinavasion.com!

At a Glance...

• Texas Instruments (TI) fingerprint identification processor
• PVD coated optical module
• Heavy gauge cast steel construction
• 5 latch mortise G system with hackproof deadbolt
• Fingerprint and password entry with emergency key override
• (R) Right style for right-hinged doors


Manufacturer Specifications

• Primary Function: Biometric Fingerprint Door Lock
• Materials: Forged Steel
• Color: Integrated stainless steel and chrome finish
• Entry Options:
  - Fingerprint
  - Password
  - Mechanical Override Key
• Fingerprint Sensor Type: 3D, 360 degre sensor
• Master Key: x2
• Key Pad: Yes (4 Digits)
• Parts (Back):
  -Battry Cover
  -Lock Surface
  -Button
  -LED Indicator
  -Back Lever
• Parts (Side):
  -Mortise
  -Deadbolt
  -Deadlocking Latch
  -Latch
• Parts (Front):
  -4 Digit Keypad
  -LED Indicator
  -Fingerprint Collection Window
  -Front Lock Panel Assembly
  -Cylinder Cover (protecting external power socket)
  -Cylinder Cover Button
• Fingerprint Door Lock Buttons:
  -Button 0 - Wake up or set Passage Mode
  -Button 1 - Enter Enroll Mode
  -Button 2 - Enter DELETE Mode
  -Button 3 - Set Password
• For ANSI door thicknesses: 45 - 50 mm
• Mortise type: G
• Power Source: 4 x AA Battery (Not Included)
• Fingerprint Capture Device:
  - Capture Area - 25mm x 20mm
  - Resolution - 500dpi
  - Authentication Time < 1s (Capture, Validate, Unlock)
  - Memory capacity - 120 users (3 for Master, 117 for Members)
  - FRR (False Rejection Rate) - 1%
  - FAR (False Acceptance Rate) - 0.0001%
• Factory Default Setting:
  - Under factory default setting - any fingerprint can unlock the lock.
• Certifications: UL, ISO 9001, CE, FCC, US Patent (see pictures below)
• Dimensions: See pictures below (mm)
• Manufacturers Ref: GPB783FAHJD8



Product Notes

• Easily enroll/erase stored fingerprints on the lock directly.
• Unique passage mode which deactivates the lock for meetings and gatherings.
• Passwords must be 11 digits long and cannot start with a 0.
• PVD coated glass surface of optical fingerprint sensor, enhancing the damage resistance of the sensor.
• Mechanical key override for emergency.
• No external wiring required.
• Auto alarm function if the door is not locked properly
• Deadlock function: when the door is closed, the deadlocking latch is pressed against the door frame which prevents the door from being opened credit card insertions or other common robbery strategies.
• Individual or group deletion of fingerprint
• Low Battery Alert
• No PC connection required
• Installation instructions included!
• (R) Right handed installation

Package Contents For Model CVMM-BG09

• Biometric Fingerprint Security Door Lock (Front)
• Biometric Fingerprint Security Door Lock (Rear)
• Mortise Lock
• Shim Plates
• Strike Box
• Strike Plate
• Mechanical Keys x2
• Screws
• Installation Instructions
• User Manual - English
