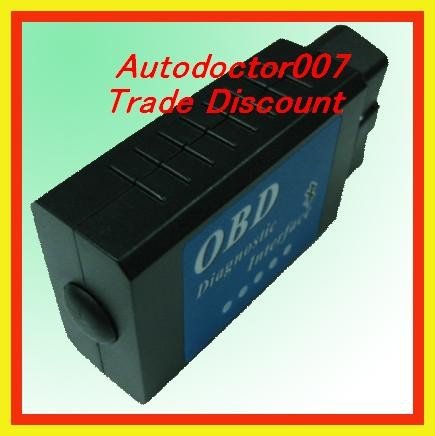

BRAND NEW ELM327 EOBD/OBDII  AUTO SCANNER INTERFACE V1.4

 Support all obd2 cars!

Discount Available!

Exchange Guarantee Within 90-days   !



We've improved our best OBD Interpreter, so now it's even better!

The new v1.4 has taken the proven v1.3, added more error monitoring and recovery, added several more AT commands, has improved the CAN printing, and has added a few features that many of you have been asking for. To name just a few of the new features, you can now:

set the maximum number of responses to obtain

remove spaces from ECU responses (to speed data transmission)

store a unique identifier in EEPROM

set the CAN mask and filter with one command

easily switch between variable and fixed CAN message lengths

send CAN remote frames (RTRs)



Features

The program lets you perform the following operations:

♦Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over

   3000 generic code definitions in the database).

♦Clear trouble codes and turn off the MIL ("Check Engine" light)

♦Display current sensor data, including:
  Engine RPM
  Calculated Load Value
  Coolant Temperature
  Fuel System Status
  Vehicle Speed
  Short Term Fuel Trim
  Long Term Fuel Trim
  Intake Manifold Pressure
  Timing Advance
  Intake Air Temperature
  Air Flow Rate
  Absolute Throttle Position
  Oxygen sensor voltages/associated short term fuel trims
  Fuel System status
  Fuel Pressure
  Many others...



Multi-Protocol Support

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

SAE J1939



Vehicle Coverage

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)

For your information

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Alfa Romeo/ Audi/ Bentley/ BMW/ Cadillac/ Chevrolet/ Chrysler/ Citroen/ Daewoo/ Fiat/ Ford/ GM/ Honda/ Hyundai/ Isuzu/ Jaguar/ Jeep/ Kia/ Land Rover/ Lexus/ Mazda/ Mercury/ Mini/ Nissan/ Mitsubishi/ Opel/ Peugeot/ Porsche/ Renault/ Rover/ Saab/ Seat/ Skoda/ Toyota/ Vauxhall/ Volvo/ VW



Software Support

• Scantool_net113win (Full Version)
• EasyOBDII  V2.2 (Full Version)
• OBD2Spy  (Demo Version)
• ScanMaster-ELM  (Demo Version)
• wOBDCRAZY  (Demo Version)

This hardware can match many other software still! But most are not free.

Can match Windows 98/ME/2000/XP/7,Some sfotware work for vista!



 Main Control Chip:PIC18F2480

 Pass Key: 1234



Packing List

A. Elm327 Main Unit with OBD2 Cable & USB Cable

B. CD-ROM

Packaging Details

Unit Type:

piece

Package Weight:

0.01kg (0.02lb.)

Package Size:

1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
