Controls from your radio & multi-function steering wheel.

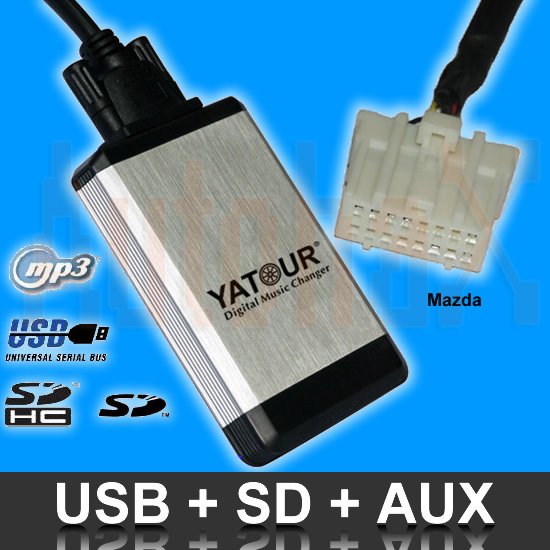

Car Digital CD Changer USB SD MP3 Interface is full-featured solution to connect, play and control MP3/WMA on car radio, without FM Transmitter control.
Combining USB slot, SD/SDHC/MMC slot, and AUX IN slot, it provides car owners access to vast audio sources.
Acted as a converter of "Entertainment Source", it can make travel more entertaining and increase peace of mind.



>> Features
* Connected with wire harness, not FM signal controlled, high quality sound guaranteed
* Controlled by car Head Unit, support Steering Wheel operation
* With imported Decoding Chip, perfectly support MP3 and WMA music tracks
* Supports SD/SDHC/MMC Card/USB Stick/Card Reader/Hard Disk
* Supports external audio source (MP3, MP4, PSP, mobile phone) via AUX IN slot
* Playlist function same as multi CDs
* Support last position memory(LPM)
* Shock proof and electromagnetic interference proof
* Easy to install, without hurting the original car circuit

* Not battery required





>> Application
Generally fit for the following Mazda cars:

1999-2003 Mazda 323
2003-2006 B Series Pickup
2002-2008 Mazda 2

2004-2009 Mazda 3
2005-2010 Mazda 5
2002-2009 Mazda 6* (refer to Note 3)
2003-2008 Miata/MX5 (non-BOSE radio)
2004-2008 RX-8* (refer to Note 4)
2003-2006 Tribute

IMPORTANT: Please check whether the 16-pin connector is fit for the CD Changer port of your car radio.



***Special Notes***
Note 1: It is only fit for Mazda vehicles whose Head Unit is with extra CD Changer Port.

Note 2: Not compatible with Sat Nav models.

Note 3: Generally, Mazda 6, produced from Nov. 2003 to Sep. 2005, needs to solder a jumper or a 0-ohm chip register on location L716 in its head unit.

Note 4: Mazda RX-8 factory radio's firmware version must be between 9.55 and 9.99. (It will not work on earlier firmware version or with 10.01. To find out which version your Mazda RX-8 has, please be sure the FM radio is turned on, then press and hold "TEXT". Then, also press and hold "1" at the same time for a few more seconds. The LCD should report your firmware version.)





>> Standard Package Content /SET:
* Module Unit      One piece
* Wire Harness   One piece
* 3.5mm male/male AUX Cable   One piece
* User Manual     One piece





>> Installation Steps


1. Before installation, switch off the electric power, take out the Head Unit, and find CD Changer port at the back of the Head Unit.
2. Properly connect the wire harness between the product and the Head Unit.
3. Switch on the electric power, insert MP3/WMA storage device and run the Head Unit, check whether the product works normally.
4. After the successful test, fix the Head Unit in the original place, and put the wire harness in proper place. Then installation is completed.






Enjoy your bidding here! : )

Packaging Details

Unit Type:

piece

Package Weight:

0.5kg (1.10lb.)

Package Size:

20cm x 15cm x 6cm (7.87in x 5.91in x 2.36in)
