Product Description:

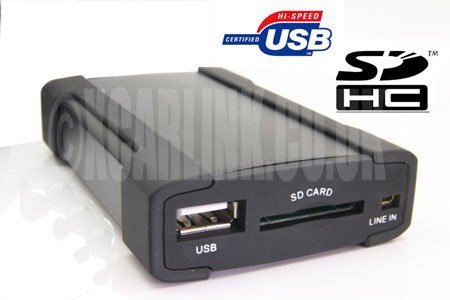

The xcarlink USB interface connects directly to the existing CD Changer port for digital sound quality but instead allows you to play and control music stored on a USB/SD card via the steering factory radio or steering wheel buttons. It can also be used to connect any portable audio device via an Aux in connection.

The Package Consist of:
1, Main Interface
2, Vehicle specific harness
3, Manual
4, USB extension cable
5, Special 3.5mm Aux in cable





Connector:



  Another connector support External CD changer. Press CD/FM to switch.



If you need for old Audi with big iso connector radio, you need to add an extra audi cable(15usd/pc extra). Here is the picture:



If you are unsure of the Compatibility with your car, please contact me before buying.



Installation Overview:
1, Plugs in to the back of the Car Stereo. It uses CD changer port of your stereo.
2, Plug-and-play operation.
3, Works as an AUX Input converter for any MP3 player.
To remove your existing car radio, You may be able to find more information via websites or by contacting a dealer/qualified installer.

Operating instructions:

USING AN SD CARD OR USB DRIVE.
The USB interface has a built in high quality MP3/WMA encoder which allows you to play and control MP3 or WMA files from your factory car stereo. The following procedure explains how to setup your SD card or USB drive.
1, Firstly you would need to ensure that your USB drive or SD card is formatted to FAT 32. and that all other files have been deleted.
2, Create folders on your USB/SD card in the root directory using the format CD01, CD02,CD03 etc. The number of folders that the factory radio can select is limited only by the number of "CD's" that your factory radio has been designed to select within a CD changer, for example if your radio can control a maximum of 6 Disks in a changer, the number of folders that it will control will be 6. Some factory radios have the capability to select up to 10 folders.
3, Load MP3 or WMA files into each folder as required.
4, Connect your USB drive or SD card to the interface and then power on the radio and switch to CD changer as the source, it will then switch to your USB/SD and is now ready to use.
5, Your radio will now recognise each folder as a "Disk". To select folders use the disk select buttons Disk #1 Disk #2 etc. On some radios this is operated via the CD+ and CD- buttons.
6, Once you have selected a folder use the seek button on the radio or steering wheel controls to change tracks within the folder.
7, Fast Forward (FF) and Rewind (RW) buttons can be used to seek within a song and the track timer will be updated to reflect the current position within the song.
8, The Random button can be used to select tracks in random order, if you change tracks while in radiom mode the next track within the folder will be selected. On some radios random tracks can be selected after you changer tracks by pressing the random button twice ( once to cancel random mode, and again to re-select it).
The information being displayed on the factory radio display represents the folder number and the track within that particular folder. For example, CD1-02 would indicate that it playing the second track within folder 1. (Display may vary according to the radio model.)
As the track number on the radio is limitted to 2 digits, the corresponding track number is always truncated.
The following should be avoided:
Long file names,
file names with the characters
MP3s using different id3 tags - keep them consistent

CONNECTING AN AUXILIARY DEVICE
1, Any audio device can be connected to the Aux in port. Firstly connect the Micro USB to 3.5mm cable to the Aux/BT port and then connect your device to the 3.5mm connection. The display on the radio will change to CD8-88. Using this method, it is not possible to control the Auxiliary device through the radio/steering wheel buttons however volume control can be adjusted. All other controls would have to be performed directly via the device.
2, If a USB/SD card is already connected it will stop playing as soon as an Auxiliary device is connected.

WARRANTY:
All our products are equipped with 1 year of manufacturer replacement warranty. If the item is not working you can always return it for the replacement or repair within 1 year of purchase.
Payment Policy:
Payment must be done within 3 business days after purchase. 14
If you have any problems with the payment please contact us in the timely manner and we will be happy to assist you in your situation.
RETURNS:
All returns must be made within 30 days after purchase. The shipping / handling charges are non-refundable.
The item must be in the original condition without any evidence of physical damage or tampering. Every customer must contact us and obtain the RMA number and return address.
Without RMA number returns are not accepted !
Refund is provided after the item recieved within 4 working days.

SHIPPING:
All orders are shipped within next 1-3 business days with UPS (3-4days to arrive you normally) or Post office.When you do the payment, please let us know the Telephone number
And the goods will be shipped as the following, if any question, free let me know.
1, shipping via UPS or Post office.
2, invoice value will be 5.5usd/pc, (Y cable is 1usd/pc if there is)
3, item name will be cable for ** Model V


If your address is belong to the remote area of UPS, we have to use Post office service, which will take more than 10 days.

SUPPORT:
For all technical inquiries please e-mail to us .
Please allow us 1 business day to answer to your inquiry.
Disclaimer: While we strive to provide you with the high-quality product and test our product thoroughly, in some cases the incompatibility is possible. It is not feasible to test the adapter on every car and every particular car stereo that is out there. Sometimes, even exactly the same looking car stereos are different inside or may have some difference in electronics / firmware etc. If the adapter is not working, or you have problem with it, please contact us. You also have 30 days to send the adapter back to us.

PLEASE TO READ OUR TERMS BEFORE YOUR PURCHASE
Please do not bid if you don't agree with our terms and conditions,
once you make the purchase, it means you understand exactly what you are buying.
Having all your questions asked before purchase is better, Thanks.

Packaging Details

Unit Type:

piece

Package Weight:

0.45kg (0.99lb.)

Package Size:

18cm x 12cm x 5cm (7.09in x 4.72in x 1.97in)
