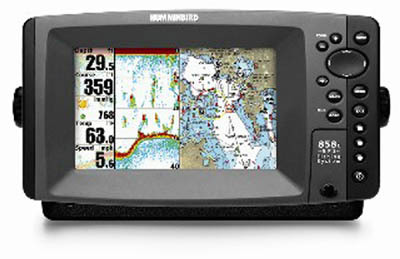

858C Combo Sonar/GPS Color Description
The 858c External GPS Combo #407810-1 features a brilliant color, wide-screen 480V x 800H 7" display with CCFL backlight, DualBeam PLUS sonar with 4000 Watts PTP power output, GPS Chartplotting with built-in ContourXD map, and advanced Fishing System capabilities. Includes unit cover. Maximize your angling experience with the Humminbird 858c Combo fishfinder GPS system.

Features:


- Switchfire Sonar
- Screen Snap Shot to Memory Card
- Sonar Recording
- Split Screen Zoom
- Split Screen Bottom Lock
- Wide Narrow Cone Split Screen
- Instant Image Update
- Freeze Frame with the ability to Mark Structure on Sonar
- Selective Fish ID+
- Real Time Sonar RTS Window
- Sonar Echo Enhancement
- TrueArch Technology
- 3D Chart View
- Large Digits View
- Custom View Selections
- Custom Digital Readout Selection
- Selectable Display Colors
- Selectable Background Colors
- View Preset Keys
- Temperature Graph
- Temperature Alarm
- Triplog
- X-Press™ Menu System

Specifications:

- Display Size: 7” Diagonal
- Display Type: 16:9 Color TFT
- Display Pixel Matrix: 480Vx800H
- Display Colors/Grayscale: 65,000 Colors
- Dual Beam Plus Sonar Coverage: 200kHz 20 degree/83 kHz 60 degree
- Sonar Optional: Quadra Beam Plus
- Target Separations: 2.5”
- Power Output(RMS): 500 watts
- Power Output (Peak to Peak): 4000 watts
- Termperature: Included
- Speed: GPS Speed Included
- Backlight: Yes
- Waterproof: Yes
- Mount: Gimbal
- Units Size: 11”Wx6”Hx4”D
- Transducer Mounting: Inside Hull or Transom
- Power Input: 10-20VDC
- Power Draw: Lights off 780mA
